Every pair of headphones colors your music. Even models marketed as “flat” or “reference” add their own frequency response signature, a bump here, a dip there, that changes what you hear. Headphone calibration corrects these colorations so you can trust your monitoring decisions, whether you’re mixing, mastering, or just listening critically.
This guide explains what headphone calibration is, why it matters, and how SoundID Reference makes it work.
Why Headphones Need Calibration
No headphone produces a perfectly flat frequency response. Driver design, ear pad materials, enclosure shape, and manufacturing tolerances all affect what reaches your eardrum. A headphone that boosts 3 kHz by 4 dB will make every vocal sound more present than it actually is. And you’ll mix accordingly, pulling vocals back until they sit right on your headphones but sound buried on everything else.
The problem compounds across the frequency spectrum. A bass-heavy headphone leads to thin mixes. A headphone with a 10 kHz dip leads to harsh mixes. Without calibration, you’re compensating for your headphones’ flaws in every mix decision you make.
This is why headphone calibration matters: it removes the guesswork. When your headphones reproduce a neutral, accurate response, your EQ decisions, compression settings, and level balances translate accurately to speakers, earbuds, car stereos, and every other playback system.
How SoundID Reference Headphone Calibration Works
Headphone calibration in SoundID Reference is straightforward: you select your headphone model from a library of pre-made profiles, and the software applies a real-time correction curve to flatten your headphones’ frequency response.
Here’s what happens behind the scenes, and what happens on your end.
What Sonarworks Does: Measurement in the Lab
Sonarworks acousticians measure headphones in a controlled laboratory environment using a proprietary methodology called PAPFR (Perceived Acoustic Power Frequency Response). Unlike conventional approaches that rely solely on a measurement microphone coupled to an artificial ear, PAPFR captures the frequency response as perceived by human hearing. This matters because a measurement microphone and a human ear don’t process sound the same way. Ear canal resonances, head-related transfer effects, and the physical perception of bass all influence what you actually hear.
Multiple units of each headphone model are measured, and the results are averaged to create a representative calibration profile. This averaged profile accounts for the typical frequency response of that model while smoothing out unit-to-unit manufacturing variation. All measurements are referenced to 83 dB SPL, a standard monitoring level used in professional studios worldwide.
The result is a library of over 500 headphone profiles, each one ready to use out of the box.

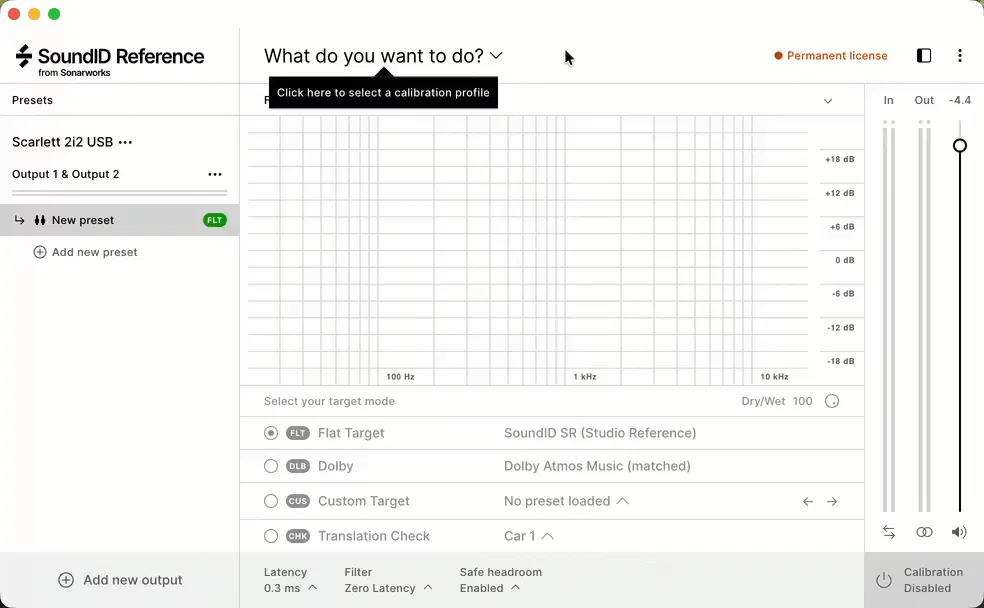

What You Do: Select Your Profile
On your end, headphone calibration takes about 30 seconds:
- Open SoundID Reference (either the standalone app or the DAW plugin).
- Use the headphone selection wizard to find your brand and model.
- If your headphones support multiple modes (such as ANC on, ANC off, or ambient mode), select the mode you’re using.
- The calibration profile loads and the correction is applied immediately.
That’s it. There’s no measurement process on your side, no microphone required, and no technical setup. You select your headphones, and the software does the rest.
Important: If your headphone model doesn’t appear in the supported list, it isn’t currently supported. Sonarworks does not recommend using a profile from a similar model. Even seemingly identical headphones from the same manufacturer can differ significantly in frequency response, and a mismatched profile may introduce more problems than it solves. You can submit a model request to help prioritize future additions.
What the Software Does: Real-Time Correction
Once a profile is loaded, the SoundID Reference calibration engine applies an inverse EQ correction curve to the audio signal in real time. Where your headphones boost a frequency, the software cuts it by the same amount. Where they dip, the software boosts. The result is a perceived frequency response that closely matches flat, calibrated studio monitors.
The correction runs either as a DAW plugin (AAX, AU, VST2, VST3) or as a standalone systemwide app that calibrates all audio output from your computer — including streaming services, video playback, and any other audio source.
Three filter processing modes let you choose the right tradeoff for your workflow:
- Zero Latency — no added processing delay, minimal CPU usage, slight phase shift. Best for tracking and real-time monitoring.
- Mixed — balances low latency with improved phase accuracy. A solid default for most mixing work.
- Linear Phase — no phase distortion, but introduces 20–50 ms of latency and potential pre-ringing on transients. Best for final mix checks and mastering. For more on how linear-phase EQ compares to minimum-phase, see our dedicated article.
What Does “Flat” Mean for Headphones?
When SoundID Reference calibrates your headphones to a “flat” target, it doesn’t aim for a literally flat frequency response measured at the ear canal. That would actually sound dull and bass-light, because it would ignore the natural acoustic effects that occur when you listen to speakers in a room.
Instead, the default flat target, called SoundID SR, matches the perceived frequency response of well-calibrated studio monitors in a treated room. The calibration accounts for the head-related transfer function (HRTF), ear canal resonances, and the bass reinforcement that a room naturally provides. The result: calibrated headphones sound like sitting in front of accurate speakers, not like listening to a test tone.
This is what enables smooth translation between headphones and monitors. For a deeper look at how target curves like the Harman Curve shape what “flat” means for headphones, SoundGuys’ technical breakdown provides an excellent independent overview. Sonarworks has also published its own research: the SoundID SR white paper proposes a methodology for defining neutral headphone sound based on in-room loudspeaker reference listening.
SoundID Reference also includes a Custom Target feature. If you prefer a slight bass lift, a treble rolloff, or any other deviation from flat, you can shape the target curve to your preference using parametric EQ controls — adjustments are applied on top of the calibrated baseline.
What Headphone Calibration Doesn’t Fix
Frequency response correction handles the most audible and impactful variable in headphone sound. But it has limits.
Total Harmonic Distortion (THD). SoundID Reference does not correct for the distortion introduced by the headphone drivers themselves. If your headphones have high THD — especially in the low frequencies — calibration can’t remove it. Choosing headphones with low THD gives calibration the cleanest foundation to work with.
Phase response. The software does not correct the headphone’s own phase distortion. However, when the Linear Phase filter mode is selected, the calibration plugin itself maintains perfect phase linearity — meaning it adds no additional phase shift on top of whatever the headphones introduce.
Physical driver limitations. If a headphone driver physically can’t reproduce clean output below 30 Hz, boosting those frequencies with EQ correction won’t produce clean bass — it’ll push the driver into distortion. Calibration works within the physical capabilities of the hardware.
Soundstage and spatial imaging. Frequency response calibration doesn’t change how wide or narrow the sound feels, or whether instruments appear inside your head or around you in space. Those characteristics are a function of the headphone’s acoustic design and your personal HRTF. This is where Virtual Monitoring comes in.
Beyond Frequency Response: Virtual Monitoring
Headphone calibration gives you an accurate frequency response. But headphones still don’t feel like speakers — sound originates in or outside your head rather than from sources in a room. Sonarworks addresses this with two additional products that build on top of headphone calibration:
Virtual Monitoring Add-on
The Virtual Monitoring for SoundID Reference simulates spatial speaker listening on your calibrated headphones. Pre-made profiles recreate the experience of nearfield, midfield, and farfield studio monitors in a treated room. The Translation Check feature adds spatial simulations of consumer devices like car stereos, laptops, smartphones, TVs, so you can audition how your mix will sound on different playback systems without removing your headphones.
Virtual Monitoring PRO
Launched in November 2025, Virtual Monitoring PRO goes further. Instead of generic room simulations, it captures your actual room and speakers and recreates that exact acoustic environment on your headphones.
The system includes a USB binaural in-ear measurement microphone that captures how your monitors, room acoustics, and your personal hearing interact. A guided workflow creates a personalized profile — so you can measure your trusted studio, then take that exact monitoring environment with you anywhere on any pair of over-ear headphones. For an independent look at what Virtual Monitoring PRO delivers, Sound on Sound’s preview covers the technology and its implications for headphone-based mixing.
Will Every Headphone Sound the Same After Calibration?
Yes, that is the core promise of headphone calibration. When two different headphone models are both corrected with SoundID Reference using the same target curve, they deliver the same perceived frequency response. This is subject to small differences imposed by each headphone’s THD profile and physical driver limitations, but for practical mixing and listening purposes, the consistency is remarkable.
This is especially valuable for collaboration. If two engineers on opposite sides of the world both use SoundID Reference with the flat SoundID SR target, they’re hearing the same tonal balance, regardless of whether one is on Sennheiser HD 650s and the other is on Beyerdynamic DT 770 Pros.
How to Get Started
- Download SoundID Reference — the 21-day free trial is fully functional with no credit card required.
- Check that your headphones are supported in the 500+ model database.
- Open the app, find your model, and load the profile. Calibration is applied instantly.
- Listen to music you know well with calibration toggled on and off. Let your ears adjust to the corrected sound before mixing.
- Use the DAW plugin for mixing sessions and the standalone app for general listening and reference checks.
If you’re also working with speakers, see our guide to studio monitor placement and how room correction works for the full monitoring chain.
FAQ — Headphone Calibration
Q: What does SoundID Reference actually correct? SoundID Reference corrects frequency response (AFR) nonlinearities. Frequency response is the most significant factor governing how headphones sound — and also the area where headphones vary the most, even between units of the same model.
Q: Do I need to measure anything myself? No. Headphone calibration profiles are pre-made by Sonarworks. You simply select your headphone model from the library in the software and calibration is applied automatically. No microphone or measurement process is needed on your end.
Q: Why do headphones marketed as “reference” still need calibration? Every headphone has design compromises dictated by acoustics, driver technology, and manufacturing priorities. Sonarworks’ measurements show that no headphone achieves perfect neutrality without correction. Calibration gives any supported headphone the help it needs to perform at its best.
Q: What if my headphone model isn’t in the list? If your model isn’t listed, it isn’t currently supported, and using a profile from a similar model is not recommended — even closely related models can differ significantly. You can submit a model request to help prioritize future additions. New profiles are added based on request volume.
Q: What about aftermarket ear pads? Aftermarket replacement pads can change the sound of your headphones significantly. Whenever possible, use the original manufacturer’s replacement pads to ensure the calibration profile remains accurate.
Q: What loudness level is the calibration designed for? All measurements and calibrations target a flat perceived frequency response at 83 dB SPL — a widely used monitoring standard in professional studios.
